HELLA

Rocker Hazard Switch - Universal

HELLA universal flush-fit rocker switches are readily adaptable to 12 and 24V applications. This large and varied range covers nearly all switching types and connections.

A wide selection of symbols ensures proper labelling of all main switching and monitoring functions. The switching and control displays can be illuminated on selected switches.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Bulb Included

Options

Rocker Hazard Flasher Switch - Pilot Lamp (12V bulb pre-fitted)

PART NO: 6HH 007 832-281

Specifications

Mounting

Mounted directly to properly dimensioned opening (1 - 2.5mm thick) or by mounting panels

Terminals

HELLA P/N Terminals
6HH 007 832-281 7 (Including lamp)

Maximum Load

12V 16A

Note

Connectors, symbols, mounts and bulb holders are to be purchased separately.

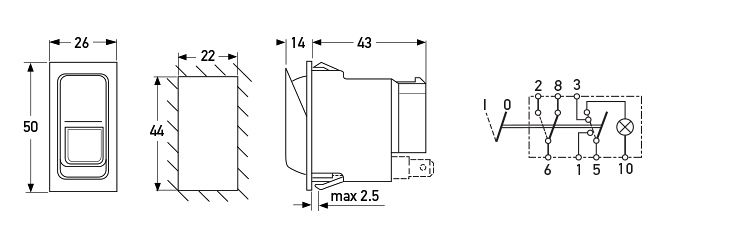

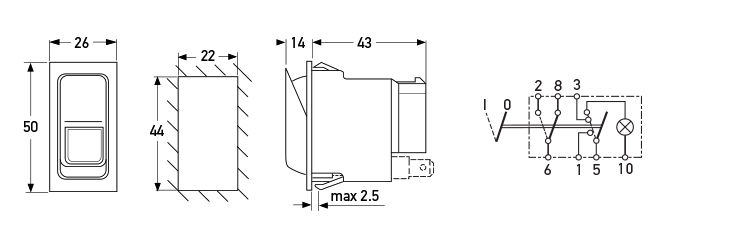

Outline

P/N 6HH 007 832-281 - All dimensions in mm.
P/N 6HH 007 832-281 - All dimensions in mm.
