HELLA

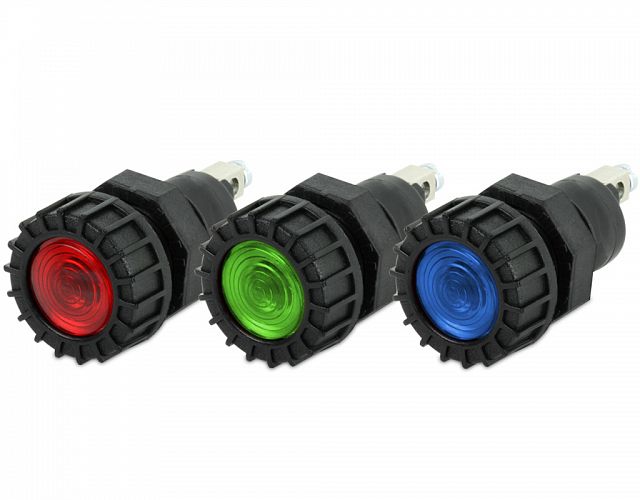

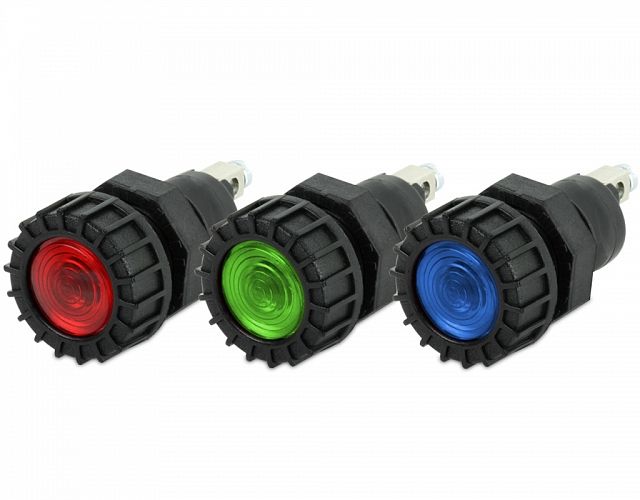

Pilot Lamp

Pilot lamp utilizing bayonet based bulb for use under heavy duty conditions.

Comes complete with 12 volt bulb. Replace bulb for 24 volt use.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

12 Volt Bulb Included

Options

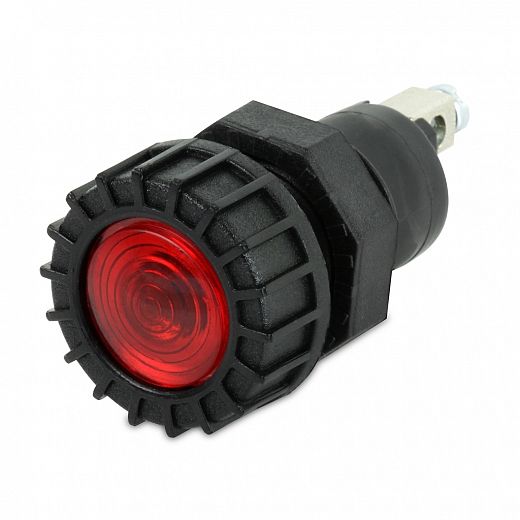

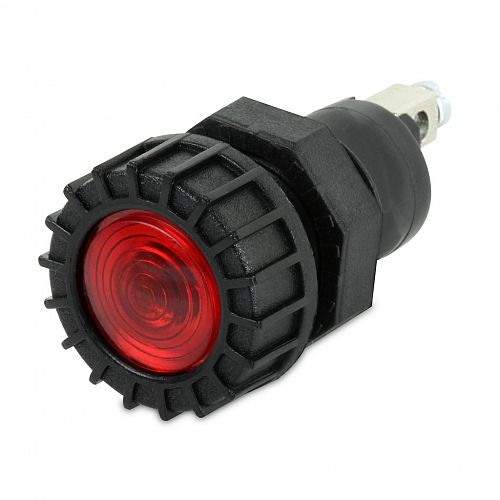

Pilot Lamp, Red - 12 Volt Bulb

Pilot Lamp, Red - 12 Volt Bulb

PART NO: 2AA 905 301-002
Legacy PN: 2712

Add to favourites

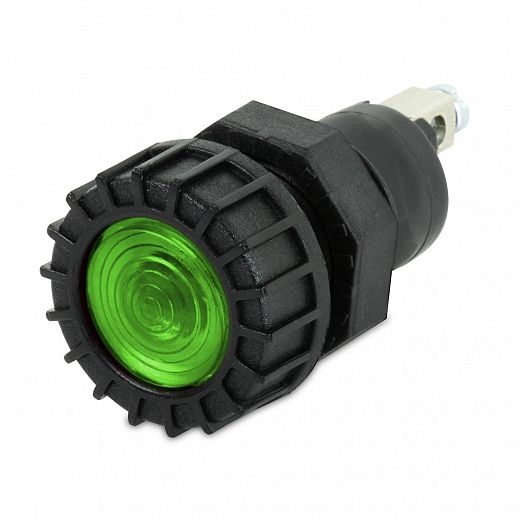

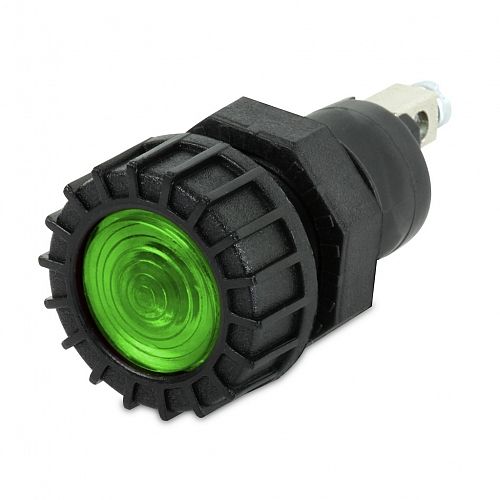

Pilot Lamp, Green - 12 Volt Bulb

Pilot Lamp, Green - 12 Volt Bulb

PART NO: 2AA 905 301-012
Legacy PN: 2713

Add to favourites

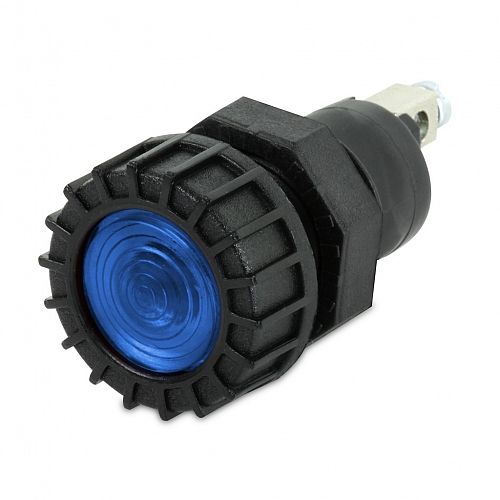

Pilot Lamp, Blue - 12 Volt Bulb

Pilot Lamp, Blue - 12 Volt Bulb

PART NO: 2AA 905 301-022
Legacy PN: 2714

Add to favourites

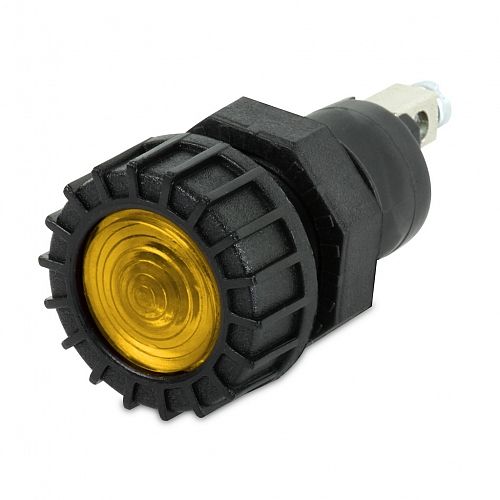

Pilot Lamp, Amber - 12 Volt Bulb

Pilot Lamp, Amber - 12 Volt Bulb

PART NO: 2AA 905 301-032
Legacy PN: 2715

Add to favourites

Specifications

Mounting

17mm diameter opening.

Bulbs to suit
12V H122
24V H242

Function
Red Ignition, handbrake and hazard warning lamps
Green Indicator lamps
Blue Main beam and auxiliary headlamps
Amber Fog lamps

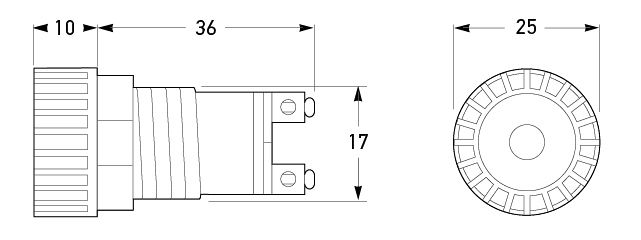

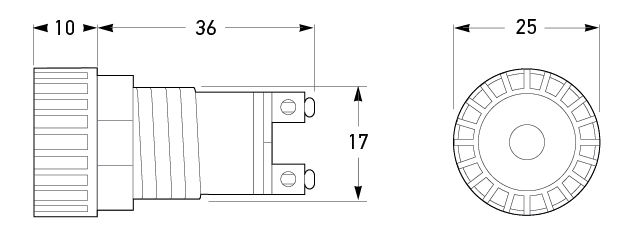

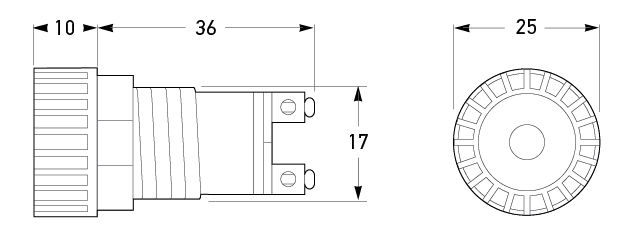

Outline

All dimensions in mm.
All dimensions in mm.
