Super Seal Connector - 3 Pole
Super seal connector housings were developed to satisfy increasing requirements for safety and reliability in the field of electrical connections. The connectors can be connected to existing components and used with the equipment presently in use in the automotive industry (sensors, oil pressure sensors, water temperature monitoring circuits, etc.).
• IP 67 (Protection against dust and temporary water immersion)
• Robust and reliable contact. Max. current 14A.
• Prefabricated secondary lock ensures that the terminal is plugged into the housing correctly and prevents slipping out of the connector.
To find a HELLA reseller near you, click here.
Rollover/tap the icons below for further details:
Options

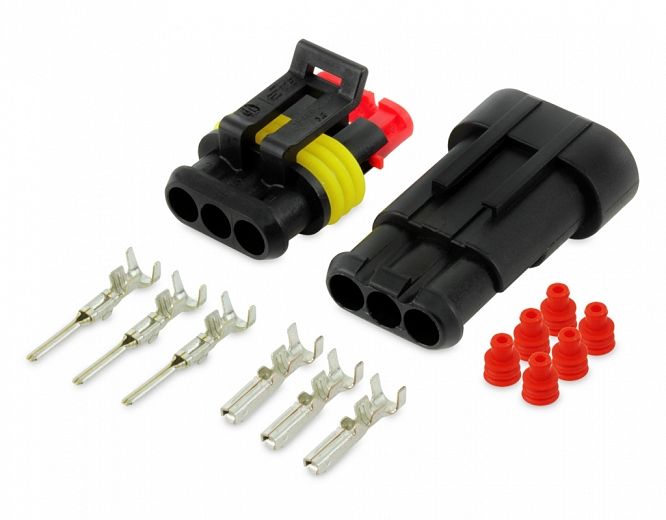

Super Seal Connector - 3 Pole Plug and Socket Kit
PART NO: 8KW 959 881-821
Legacy PN: 4983

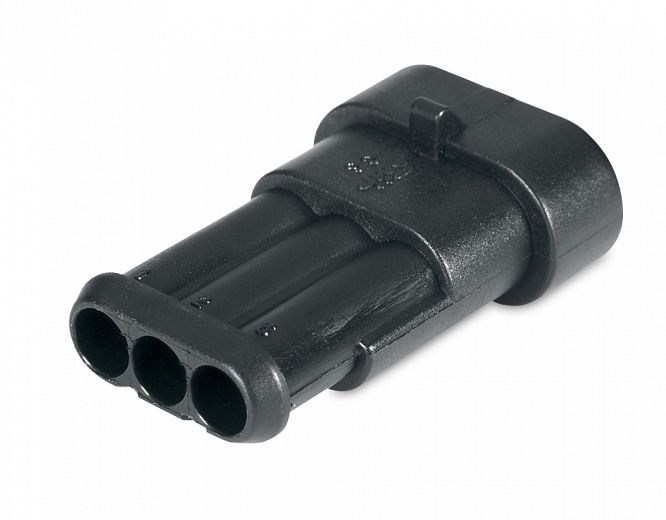

Super Seal Connector - 3 Pole Plug - (Pack of 3)
PART NO: 8KW 959 881-535
Legacy PN: 4983P

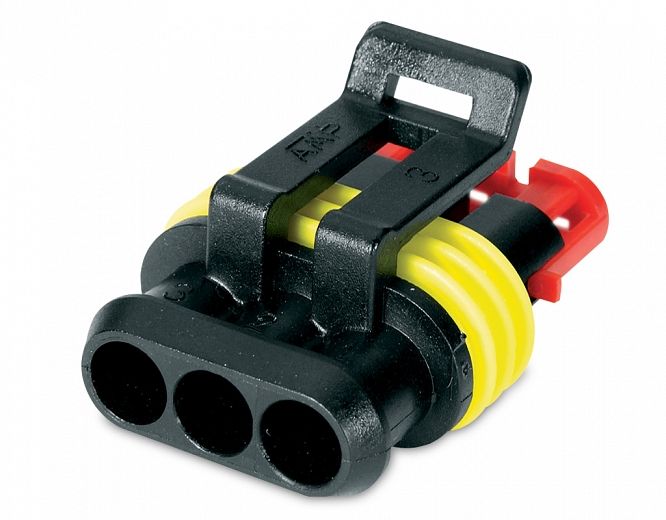

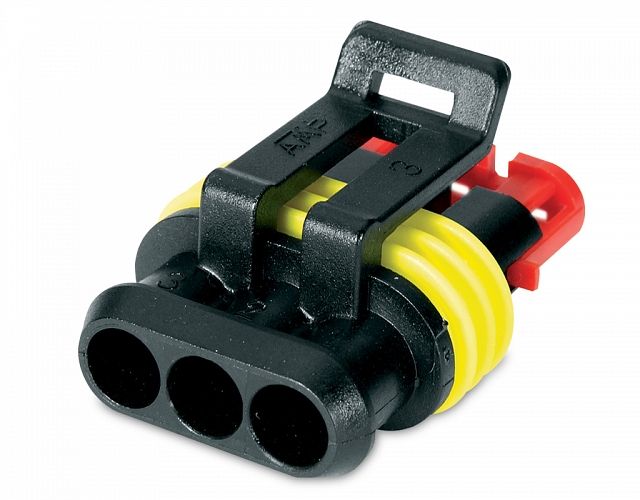

Super Seal Connector - 3 Pole Socket - (Pack of 3)
PART NO: 8KW 959 881-035
Legacy PN: 4983S
Specifications
Note |
For ‘P’ and ‘S’ versions only the bare connector is supplied. Select appropriate seals and terminals to suit. Plug and socket kits come complete with terminals and seals. |
||||
Seals |
Made from silicon rubber. Seals shaped for easy insertion into connector. The hoop rings in the crimping area ensure excellent pull relief for the terminals. Suitable with insulation 1.5-33mm diameter. |
||||
Connector |
Housing and secondary lock - polyamide 6.6 glass filled |
||||
Resistant to |
Ozone, salts (CaCI2-NaCI), petrol, diesel fuel, anti-freeze, ATM and engine oil. |
||||
Temperature Range |
-40°C to 125°C |
||||
Insulation resistance |
Minimum 200MΩ |
||||
Terminals |
|
||||
Current rating |
14A maximum |
||||
Insert force |
Maximum 8N |
||||
Contact resistance |
Maximum 3MΩ |
||||
