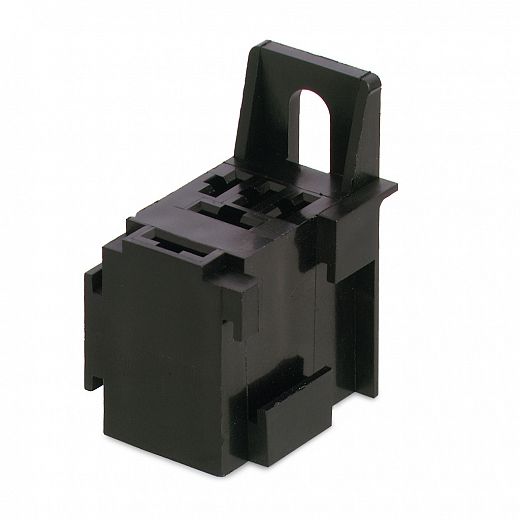

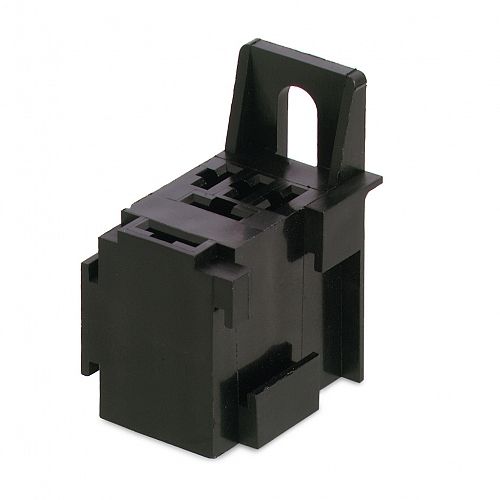

Relay Connector - Suit Micro Relay
For micro-relays with 5 pole SAE terminal arrangement. For receiving three 4.8mm and two 6.3mm blade terminal connectors. Made of black plastic. Multiple micro connectors may be clipped together to form a relay bank.
To find a HELLA reseller near you, click here.
Rollover/tap the icons below for further details:
Options
Relay Connector - Suit Micro Relay
PART NO: 8JD 733 767-102
Legacy PN: 4973M
Specifications
Socket |
5 pole |
To Suit |
P/Ns 3064, 3064L and 3065. |
Connector: Relay Connector
Type: 5 Pole
Type: 5 Pole
Connector: 4 Terminal
Features: Normally Open, Resistor
Notes: Terminals 85 and 86 are 4.8mm
Voltage: 12V
Features: Normally Open, Resistor
Notes: Terminals 85 and 86 are 4.8mm
Voltage: 12V
Connector: 5 Terminal
Features: Change Over, Resistor
Notes: Terminals 85, 86 and 87a are 4.8mm
Voltage: 12V
Features: Change Over, Resistor
Notes: Terminals 85, 86 and 87a are 4.8mm
Voltage: 12V
Connector: 5 Terminal
Features: Latching
Notes: Terminals 1, 2 and 6 are 4.8mm
Voltage: 12V
Features: Latching
Notes: Terminals 1, 2 and 6 are 4.8mm
Voltage: 12V
