HELLA

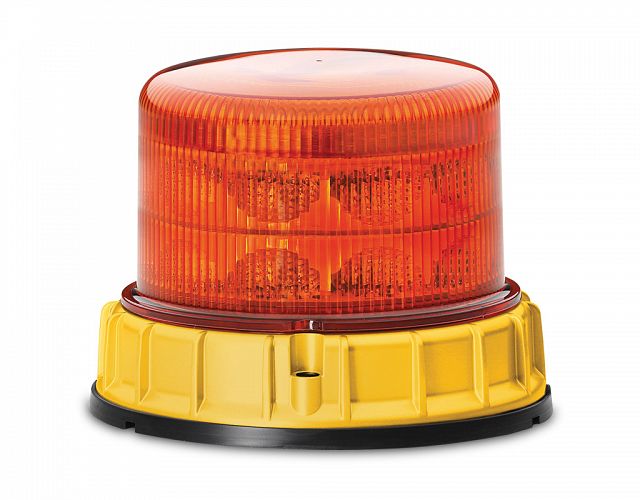

LED DuraRAY 4.0 Rotating/Flashing Beacon

With excellent light output and rugged design, the DuraRAY 4.0 is one of the toughest LED beacons on the market. The DuraRAY 4.0 is the first HELLA beacon where you can select between 16 rotating or flashing warning signals. The integrated photo optic light sensor automatically toggles light intensity between day and night mode, this guarantees the best possible warning effectiveness.

The double stacked rows of LED increases the light exit area, producing a very highly visual warning effect. The beacons have been developed without any moving parts and the shockproof polycarbonate dome guarantees reliable protection from impact.

Interference-free EMC properties ensure no electronic interference. The DuraRAY 4.0 is maintenance free and designed for long term operation in harsh and demanding conditions, such as mining.

• High Performance 2 layer LED Beacon
• Choice of rotating or flashing functions
• Completely sealed against dust and water
• Special corrosion proof coating
• Low power consumption (up to 32 watts)
• Sensor light control toggles between day and night modes
• Robust design - Vibration and shock resistant

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

LED DuraRAY 4.0 Rotating/Flashing Beacon

PART NO: 2XD 012 985-001

Specifications

Mounting

Fixed mounting on horizontal surfaces.

Voltage

Multivolt™ for optimum brightness at input voltages from 10 to 30 volts.

Power Consumption

Up to 32W

Protection

Reverse polarity and Transient Spike Circuit protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Flash Rate

16 selectable flash patterns including rotating.

RF Suppression

CISPR25 Class 5

Compliance

ECE R65/00 TA1 ECE R10 SAE J845 Class 1

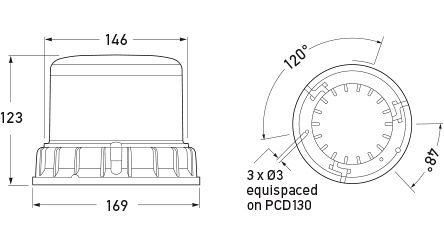

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

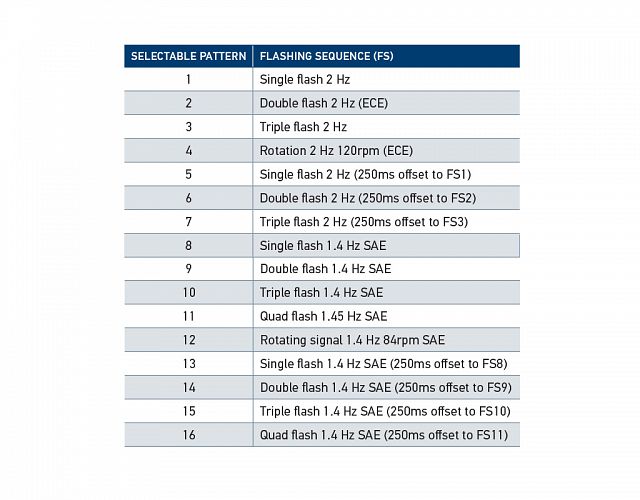

Flash rates
Flash rates
