DuraLED® Combi-S Trailer Lighting Conversion Kit

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.

‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle. Whilst keeping its design heritage and appearance the DuraLED® range has been continuously upgraded to the latest material and electronic component technology.

A complete Fit & Forget solution for trailers or caravans.
Lamps are completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Grilamid®
HELLA P/N 2378 features Grilamid lens. Please click on Grilamid above for further information.

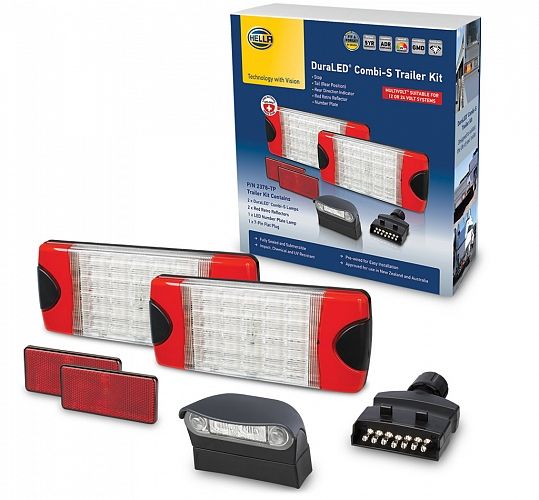

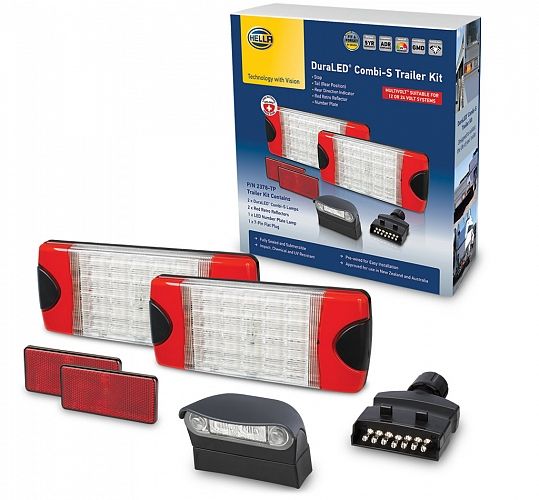

Contains:
- 2 x DuraLED® Combi-S stop/rear position and rear direction indicator lamp heavy duty P/N 2378
- 2 x Red retro reflectors P/N 2923
- 1 x LED number plate lamp P/N 2559
- 1 x 7 pole flat plug P/N 4921

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED® Combi-S Trailer Lighting Conversion Kit

PART NO: 2VB 980 613-801
Legacy PN: 2378TP

Specifications

Kit Contents

Each trailer lamp kit contains:
2 x 2378 DuraLED® Combi-S stop/rear position and rear direction indicator
lamp with 6m sheathed multi-core cable and DuraLED® Lifetime Warranty
2 x 2923 Red retro reflector
1 x 2559 LED number plate lamp with 5m sheathed multi-core cable.
1 x 4921 7 pole flat plug

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Warranty

For warranty information, please view here

Compliance

CE P/N 2378:
ADR 6/00: Cat 2a
E24 5883

ADR 49/00
ECE R6/01


 ECE R7/01
P/N 2559:
ADR 48/00
ECE R4/00



Documents

Document File Name File Size
  2SD 980 613-0xx_Instruction Sheet - 2378 DuraLED S-Combi STI.pdf 460.53 KB
