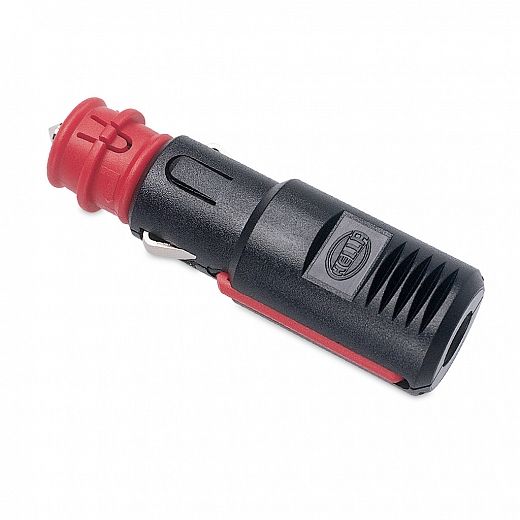

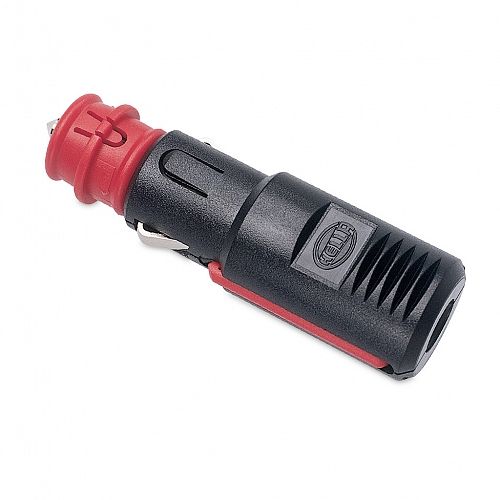

2 Pole Fused Power/DIN Plug

Combination lighter/DIN 2 pole plug with in-built 8A ceramic type fuse suitable for both cigarette lighter and DIN ISO 4165 sockets (standard 2 pole sockets).

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

2 Pole Fused Power/DIN Plug

2 Pole Fused Power/DIN Plug

PART NO: 8JA 007 589-004
Legacy PN: 4952

Add to favourites

Specifications

Maximum load
12V 8A

Socket to Suit

P/Ns 4915, 4916, 4917, 4918 and 4943-R.

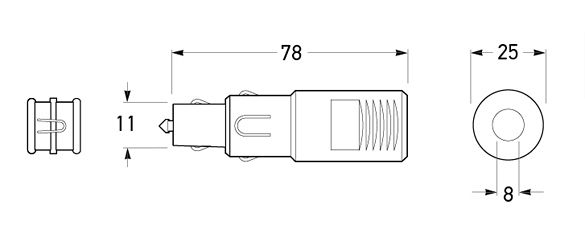

Outline

All dimensions in mm.
All dimensions in mm.
